Code layout

BOUT++ is organised into classes and groups of functions which operate on them: It’s not purely object-oriented, but takes advantage of many of C++’s object-oriented features.

Fig. 21 shows the most important parts of BOUT++ and how they fit together.

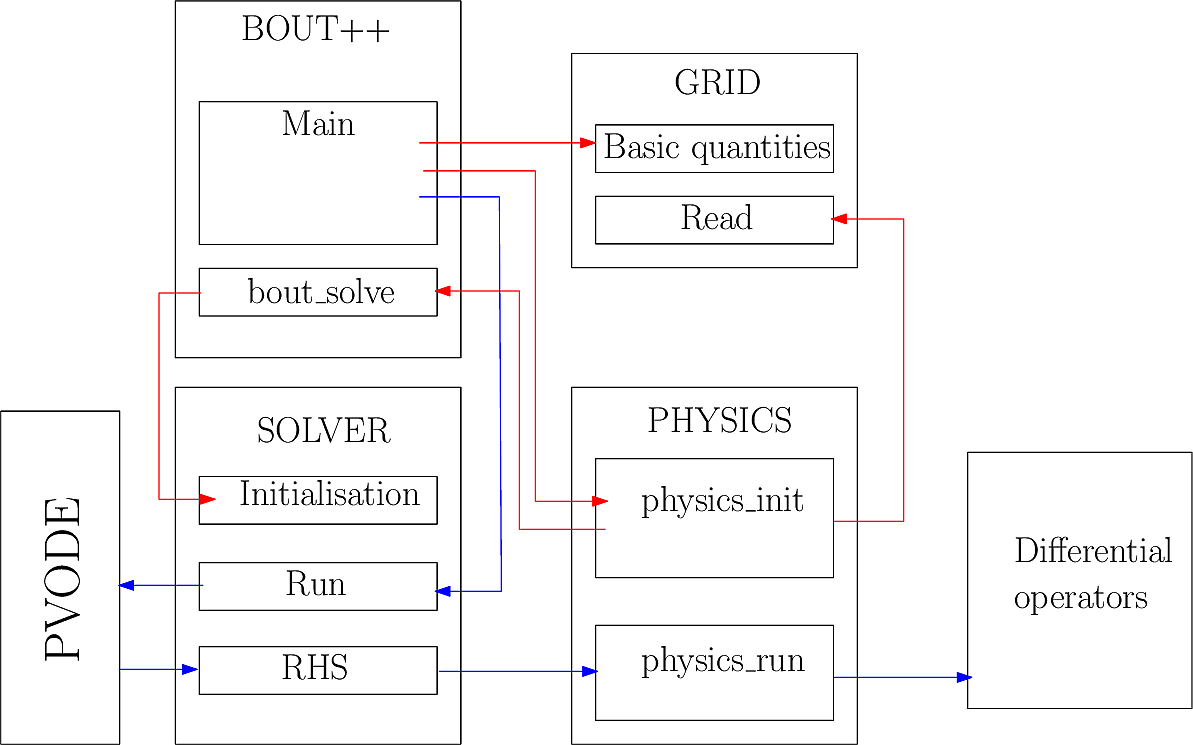

Fig. 21 Overview of BOUT++ control flow during initialisation (red), and running (blue)

The initialisation process is shown in red: basic information is first read from the grid file (e.g. size of the grid, topology etc.), then the user-supplied initialisation code is called. This code can read other variables from the grid, and makes at least one call to PhysicsModel::bout_solve() to specify a variable to be evolved. The main thing bout_solve does is to add these variables to the solver.

The process of running a timestep is shown in blue in Fig. 21: The main loop calls the solver, which in turn calls PVODE. To evolve the system PVODE makes calls to the RHS function inside solver. This moves data between PVODE and BOUT++, and calls the user-supplied PhysicsModel::rhs() code to calculate time-derivatives. Much of the work calculating time-derivatives involves differential operators.

Calculation of the RHS function, and handling of data in BOUT++ involves many different components. Fig. 22 shows (most) of the classes and functions involved, and the relationships between them. Some thought was put into how this should be organised, but it has also changed over time, so some parts could be cleaner.

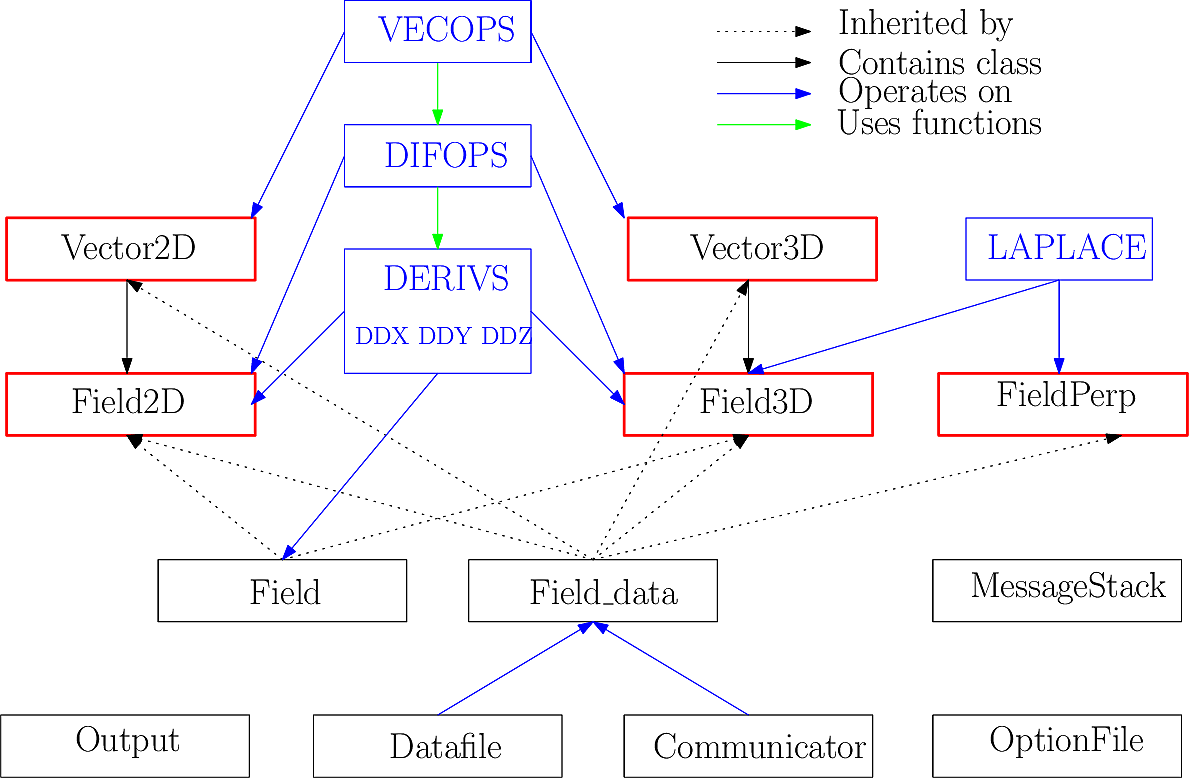

Fig. 22 Relationship between important classes and functions used in calculating the RHS function

Directories

The source code for the core of BOUT++ is divided into include files (which can be used in physics models) in bout++/include/bout, and source code and low-level includes in bout++/src. Many parts of the code are defined by their interface, and can have multiple different implementations. An example is the time-integration solvers: many different implementations are available, some of which use external libraries, but all have the same interface and can be used interchangeably. This is reflected in the directory structure inside bout++/src. A common pattern is to store individual implementations of an interface in a subdirectory called impls.

include/bout/foo.hxx
src/.../foo.cxx
src/.../impls/one/one.hxx
src/.../impls/one/one.cxx

where foo.hxx defines the interface, foo.cxx implements common functions used in several implementations. Individual implementations are stored in their own subdirectories of impls. Components which follow this pattern include invert/laplace and invert/parderiv inversions, mesh, and solver.

The layout of the src/ directory is as follows:

• src/bout++.cxx: Main file which initialises, runs and finalises BOUT++. The two most important public functions are BoutInitialise() and BoutFinalise() for starting/stopping the library.

• src/field

  • Implementations of “fields” (the scalars Field2D, Field3D, FieldPerp, and vectors Vector2D, Vector3D), as well as basic operations (arithmetic, Algebraic operators, and vector calculus), and initialisation.

• src/invert

  • Implementations of different inverse operators, including Fourier transforms (via an interface to FFTW, see bout::fft::rfft() and bout::fft::irfft()).

• src/invert/laplace

  • Implementations of some inverse generalised Laplacian operator variations, where some directions may be constant. See Laplacian inversion for more details.

• src/invert/parderiv

  • Inversion of parallel derivatives, intended for use in preconditioners. See InvertPar

• src/invert/pardiv

  • Inversion of parallel divergence, intended for use in Nonlocal heat flux models.

• src/mesh

  • Implementations of low-level numerical routines. This includes things like the inter-process communications, boundary conditions, derivative operators, interpolation, the coordinate system (including Parallel Transforms), and the Mesh itself.

• src/physics

  • This contains some specialised physics operators and routines, such as gyro-averaging and Nonlocal heat flux models.

• src/solver

  • Implementations of time integration solvers

• src/sys

  • General purpose utilities used throughout the library, such as BoutException, wrappers for C libraries like PETSc and HYPRE, screen and file input and output.
